无线wifi 支持安卓/苹果手机、电脑远程观看！
![355(E[S_W2LL}%{2C9]O$7A](http://i05.c.aliimg.com/img/ibank/2013/863/720/921027368_174023004.jpg)
带插卡SD/TF卡 最大支持32G
带云台，通过手机、电脑远程控制旋转！
监控无死角 安全无忧
wanscam 品牌网络摄像机 您值得拥有！！！
wanscam网络摄像机国际品牌 出口品质 ！
网络摄像机多画面监控 异地集中管理 安全无忧
详细参数：
| 型号:HW0024 | ||
| 系统特色 | 系统安全 | 三级帐号、密码权限管理 |
| P2P功能 | 无需申请支持厂家免费P2P(JWEV-000xx-xxxxx)，即插即用，无需端口转发,支持二维码扫描 | |
| TF卡录像 | 最大支持32G，支持浏览器观看录像，或者读取TF中的录像文件 | |
| 手机访问 | 支持IPhone、Android直接观看； | |
| 内核 | 微电脑处理器 | 32Bit RSIC Embedded Processor |
| 镜头 | 镜头 | 3.6mm标配 |
| 视频 | 压缩方式 | H.264 |
| 信号系统 | 100万像素(1280*720)/25fps，VGA(640*480),QVGA(320*240) | |
| 帧频率 | 25fps | |
| 分辨率 | 100万像素(1280*720)/25fps，VGA(640*480),QVGA(320*240) | |
| 图象调整 | 亮度、对比度可调；自动白平衡、背光补偿 | |
| 夜视 | 夜视效果 | 10颗LED灯，夜视距离10米 |
| 网络 | 网络接口 | RJ-45 10/100Mb自适应以太网接口 |
| 网络协议 | 支持TCP/IP、HTTP、ICMP、DHCP、FTP、SMTP等 | |
| 在线用户数 | 4人 | |
| 支持IP地址 | 静态IP地址、动态IP地址 | |
| 无线 | 无线标准 | WIFI,802.11 b/g/n |
| 加密方式 | WEP，WPA，WPA2 Encryption | |
| 其它 | 材料、外形、使用环境 | 塑胶、室内云台机 |
| 机器颜色 | 黑色、白色 | |
| 电源 | DC5V/2A | |
| 工作温度、湿度 | –10～50℃ 95% RH | |
| 尺寸 | 机身尺寸：（112mm高x102.6mm直径） | |
| 包装尺寸：（182mmx110mmx149mm） | ||
| 重量 | 净重：280g 毛重：600g（注：以实物为准） | |
| 配件 | 电源适配器 光盘（含说明书） 安装螺丝 | |
| 报警 | 报警检测 | 移动侦测,检测灵敏度设置 |
| 报警通知 | 支持Email、FTP图片上传. | |
| 系统要求 | 系统、浏览器 | Microsoft Win98 SE/ME/2000/XP、Vista、Win7 操作系统；Internet Explorer 9.0, FireFox，Google Browser |
| 认证 | 认证 | CE, FCC, RoHS |
| 质保 | 质保 |
2年 |
| Model No: HW0024 | ||
| Features | System Security | Supports there-level account, password, user authority management |
| DDNS | Free DDNS bounded i.e., http://demo.vipcam.org | |
| P2P (Free) | No need to preset camera, Offer free P2P(JWEV-000xx-xxxxx), Plug&play, Support QR code scanning to view | |
| Alarm | Work with linkage box, support : Motion detection, snapshot, video record, email photo, whistle alarm | |
| Cell Phone View | Support Iphone and andriod smart Phone view via QR code scanning. | |
| TF Card Record | Support 32G TF card . Support the record view via browser or read the record documents in the TF Card directly. | |
| Video | Image Compression | H.264 |
| Image frame Rate | 25fps | |
| Resolution | (1280*720)/25fps，VGA(640*480),QVGA(320*240) | |
| Flip Mirror Images | Vertical / Horizontal | |
| Video Parameters | Brightness, Contrast | |
| Lens | Lens Type | Glass Lens Standard : 3.6 mm |
| Night Vision | Night Visibility | 10Φ5 IR LEDs, Night visibility up to 10 meters |
| Audio | Input / Output | Built-in Microphone and Speaker. Two way audio. |
| Audio Interface | Audio IN / Audio Out | |

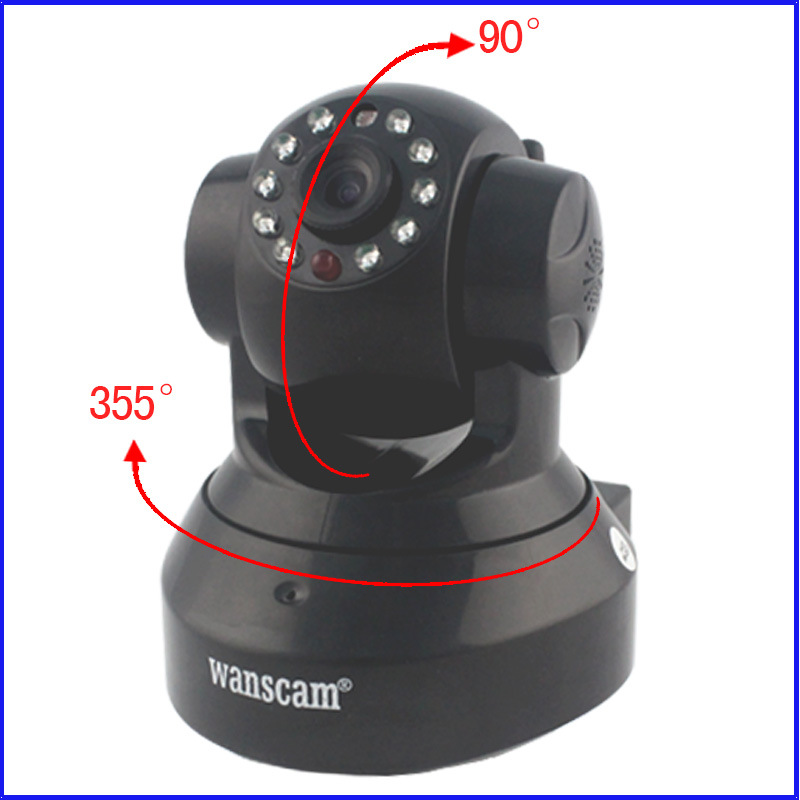

| Pan/Tilt | Rotation Angle | Pan:355°, Tilt: 90° |
| Rotation Speed | 10 Level PT Speed Optional, Speed Range 5-50°/ Second | |
| Preset | Support 16 Preset Positions | |
| Network | Ethernet | One 10/100Mbps RJ-45 |
| Supported Protocol | HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnP etc. | |
| IP Mode | Dynamic IP address, static IP address | |
| Online Visitor | Support 4 visitors at the same time | |
| Wireless | Wireless Standard | IEEE 802.11b/g/n |
| Wireless Security | WEP, WPA, WPA2 Encryption | |
| Others | Product Type | Plastic/ Indoor Use |
| Colour | Black or Silver | |
| Power | DC5V 2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item size: 112mmx102.6mm (HXW) | |
| Packaging size:182mmx110mmx149mm(LxWxH) | ||
| Weight | N.W.:280g G.W.: 600g (Note:Actual Weight Final) | |
| Accessories | Adaptor, CD(including manual), Bracket,Screw | |
| Alarm | Alarm Detection | Motion detection ,Motion Detect Sensibility can be adjusted |
| Alarm Action | Support Email photo, FTP photo etc. | |
| System | Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/Windows7 32Bit |
| Browser | IE6.0, IE7.0, IE9.0, FireFox, Google or other standard browser | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty | |
