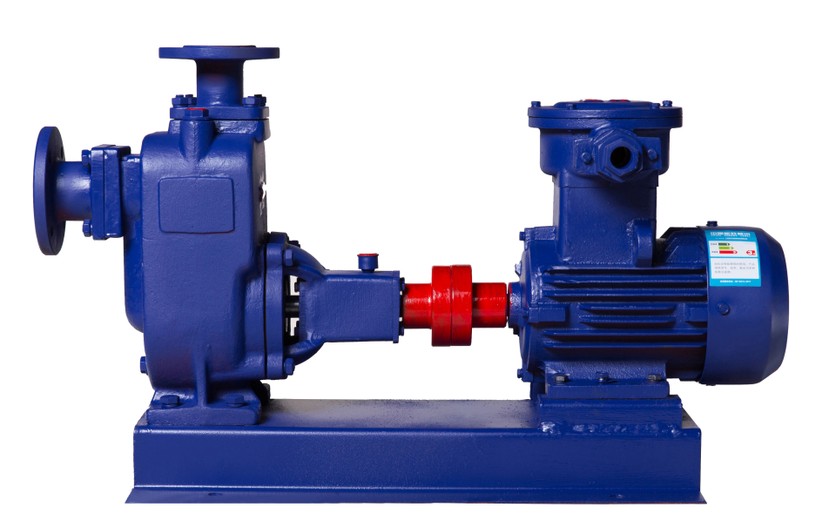

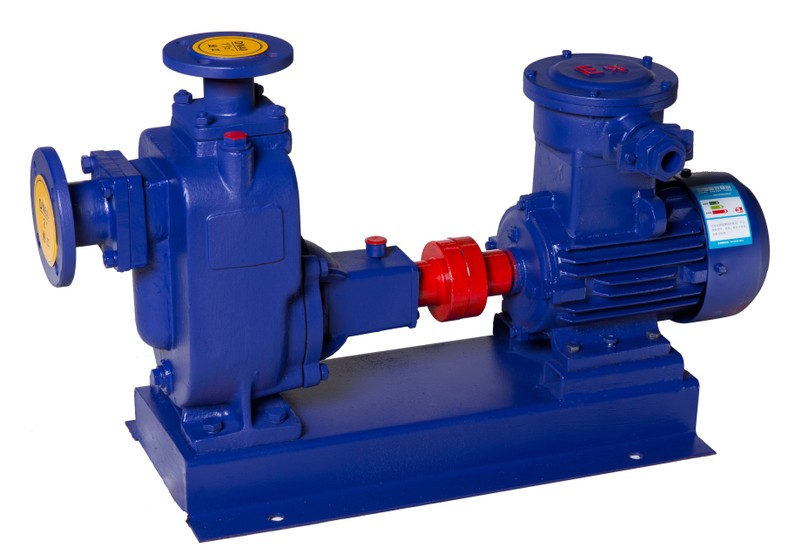

一、ZWB型自吸式防爆排污泵产品概述：
ZWB型自吸式防爆排污泵集自吸和无堵塞排污于一身，既可象一般清水自吸泵那样不需按底阀，不需引灌水、又可抽吸含有大颗粒固体块、长纤维的污物、沉淀物废矿杂质、粪便处理及一切工程污水物，配合防爆电机即可在一些特殊环境下工作。完全减轻工人的劳动强度，大大提高安全系数，而且使用、移动、安装方便、极少维修、性能稳定。
二、ZWB型自吸式防爆排污泵使用范围：
①环境温度≤45℃，介质温度≤60℃。
②介质PH值铸铁泵为6～9，不锈钢泵为1～14。
③通过颗粒最大直径为泵口径的60%，纤维长度为口径的5倍。
④介质中杂质总重量不超过介质总重量的15%，介质比重不超过1240千克/立方米。
三、ZWB型自吸式防爆排污泵结构及工作原理
ZWB型自吸式防爆排污泵主要由泵体、叶轮、后盖、机械密封、泵轴、轴承座、进口阀、气液分离管、加水阀门、进、排接管等组成。泵的结构见图。泵的工作原理：泵体内设有储液腔，并通过上方的回流孔和下方的循环孔与泵工作腔相通，构成泵的轴向回流外混式系统。泵停止工作后，泵内腔已储有一定容积的液体。当泵起动时，泵内的储液在叶轮的作用下，夹带着空气被向上抛出，液体通过气液分离管的网格回流到工作腔，气体被排出泵外，使泵内形成一定的真空度，达到自吸的作用。
四、ZWB型自吸式防爆排污泵型号参数：
|
型 号
|
口径（mm）
|
流量
|
扬程
|
功率
|
吸程
|
转速
|
|
进口
|
出口
|
(m3/h)
|
(m)
|
(KW)
|
(m)
|
(r/min)
|
|
ZWB25-8-15
|
25
|
25
|
8
|
15
|
1.5
|
5.5
|
2900
|
|
ZWB25-8-30
|
25
|
25
|
8
|
30
|
3
|
5.5
|
2900
|
|
ZWB32-5-20
|
32
|
32
|
5
|
20
|
2.2
|
5.5
|
2900
|
|
ZWB32-10-20
|
32
|
32
|
10
|
20
|
2.2
|
5.5
|
2900
|
|
ZWB32-9-30
|
32
|
32
|
9
|
30
|
3
|
5.5
|
2900
|
|
ZWB40-10-20
|
40
|
40
|
10
|
20
|
2.2
|
5.5
|
2900
|
|
ZWB40-20-15
|
40
|
40
|
20
|
15
|
2.2
|
5.5
|
2900
|
|
ZWB40-15-30
|
40
|
40
|
15
|
30
|
3
|
5.5
|
2900
|
|
ZWB50-10-20
|
50
|
50
|
10
|
20
|
2.2
|
5.5
|
2900
|
|
ZWB50-20-12
|
50
|
50
|
20
|
12
|
2.2
|
5.5
|
2900
|
|
ZWB50-15-30
|
50
|
50
|
15
|
30
|
3
|
5.5
|
2900
|
|
ZWB50-18-20
|
50
|
50
|
18
|
20
|
3
|
5.5
|
2900
|
|
ZWB50-20-35
|
50
|
50
|
20
|
35
|
5.5
|
5.5
|
2900
|
|
ZWB50-25-30
|
50
|
50
|
25
|
30
|
5.5
|
5.5
|
2900
|
|
ZWB50-20-40
|
50
|
50
|
20
|
40
|
7.5
|
5.5
|
2900
|
|
ZWB50-20-50
|
50
|
50
|
20
|
50
|
11
|
5.5
|
2900
|
|
ZWB65-30-18
|
65
|
65
|
30
|
18
|
4
|
5.5
|
2900
|
|
ZWB65-30-18
|
65
|
65
|
30
|
18
|
4
|
5.5
|
1450
|
|
ZWB65-25-30
|
65
|
65
|
25
|
30
|
5.5
|
5.5
|
2900
|
|
ZWB65-25-40
|
65
|
65
|
25
|
40
|
7.5
|
5.5
|
2900
|
|
ZWB65-40-25
|
65
|
65
|
40
|
25
|
7.5
|
5.5
|
1450
|
|
ZWB65-50-30
|
65
|
65
|
50
|
30
|
7.5
|
5.5
|
2900
|
|
ZWB65-65-25
|
65
|
65
|
65
|
25
|
7.5
|
5.5
|
2900
|
|
ZWB65-25-50
|
65
|
65
|
25
|
50
|
11
|
5.5
|
2900
|
|
ZWB80-40-16
|
80
|
65
|
40
|
16
|
4
|
5.0
|
2900
|
|
ZWB80-40-16
|
80
|
65
|
40
|
16
|
4
|
5.0
|
1450
|
|
ZWB80-50-20
|
80
|
65
|
50
|
20
|
5.5
|
5.0
|
1450
|
|
ZWB80-40-25
|
80
|
65
|
40
|
25
|
7.5
|
5.5
|
1450
|
|
ZWB80-25-40
|
80
|
65
|
25
|
40
|
7.5
|
5.5
|
2900
|
|
ZWB80-65-25
|
80
|
65
|
65
|
25
|
7.5
|
5.5
|
2900
|
|
ZWB80-80-20
|
80
|
65
|
80
|
35
|
7.5
|
5.5
|
1450
|
|
ZWB80-80-35
|
80
|
65
|
80
|
35
|
15
|
5.5
|
2900
|
|
ZWB80-40-50
|
80
|
65
|
40
|
50
|
18.5
|
5.5
|
1450
|
|
ZWB80-50-60
|
80
|
65
|
50
|
60
|
22
|
5.0
|
2900
|
|
ZWB100-100-15
|
100
|
80
|
100
|
15
|
7.5
|
5.5
|
1450
|
|
ZWB100-80-20
|
100
|
80
|
80
|
20
|
7.5
|
5.5
|
1450
|
|
ZWB100-100-20
|
100
|
80
|
100
|
20
|
11
|
5.5
|
1450
|
|
ZWB100-100-30
|
100
|
80
|
100
|
30
|
22
|
5.5
|
1450
|
|
ZWB100-80-45
|
100
|
80
|
80
|
45
|
30
|
5.5
|
2900
|
|
ZWB100-80-60
|
100
|
80
|
80
|
60
|
37
|
5.5
|
2900
|
|
ZWB100-80-80
|
100
|
80
|
80
|
80
|
45
|
5.5
|
2900
|
|
ZWB125-120-20
|
125
|
125
|
120
|
20
|
15
|
5.5
|
1450
|
|
ZWB150-180-14
|
150
|
125
|
180
|
14
|
15
|
5.5
|
1450
|
|
ZWB150-150-20
|
150
|
125
|
150
|
20
|
15
|
5.5
|
1450
|
|
ZWB150-200-15
|
150
|
125
|
200
|
15
|
18.5
|
5.5
|
1450
|
|
ZWB150-200-20
|
150
|
125
|
200
|
20
|
22
|
5.5
|
1450
|
|
ZWB150-180-20
|
150
|
125
|
180
|
20
|
22
|
5.0
|
1450
|
|
ZWB150-160-30
|
150
|
125
|
160
|
30
|
30
|
5.0
|
1450
|
|
ZWB150-180-30
|
150
|
125
|
180
|
30
|
37
|
5.0
|
1450
|
|
ZWB150-180-38
|
150
|
125
|
180
|
38
|
55
|
5.5
|
1450
|
|
ZWB150-150-45
|
150
|
125
|
150
|
45
|
55
|
5.5
|
1450
|
|
ZWB200-280-14
|
200
|
150
|
280
|
14
|
22
|
5.0
|
1450
|
|
ZWB200-280-20
|
200
|
150
|
280
|
20
|
37
|
5.0
|
1450
|
|
ZWB200-300-25
|
200
|
150
|
300
|
25
|
45
|
5.0
|
1450
|
|
ZWB200-280-28
|
200
|
150
|
280
|
28
|
55
|
5.2
|
1450
|
|
ZWB250-420-20
|
250
|
200
|
420
|
20
|
55
|
4.5
|
1450
|
|
ZWB300-800-14
|
300
|
250
|
800
|
14
|
55
|
4.5
|
1450
|
|
五、ZW型系列无堵塞自吸式排污泵安装尺寸
 |
|
型号
|
L
|
L1
|
L2
|
L3
|
L4
|
A
|
F
|
B1
|
B2
|
H
|
Hl
|
H2
|
n3
|
n-d
|
|
25-8-15
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
32-5-20
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
32-10-20
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
32-9-30
|
890
|
740
|
140
|
445
|
230
|
220
|
510
|
310
|
360
|
205
|
345
|
540
|
24
|
4-φl6
|
|
40-10-20
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
3lO
|
500
|
24
|
4-φl6
|
|
40-20-5
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
40-15-30
|
890
|
740
|
140
|
445
|
230
|
220
|
510
|
310
|
360
|
205
|
345
|
540
|
24
|
4-φl6
|
|
50-10-20
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
50-20-12
|
800
|
640
|
115
|
400
|
220
|
210
|
450
|
250
|
300
|
190
|
310
|
500
|
24
|
4-φl6
|
|
50-15-30
|
890
|
740
|
140
|
445
|
230
|
220
|
510
|
310
|
360
|
205
|
345
|
540
|
24
|
4-φl6
|
|
50-20-35
|
1130
|
840
|
135
|
570
|
315
|
350
|
650
|
350
|
410
|
240
|
430
|
630
|
25
|
4-φl8
|
|
65-30-18
|
1120
|
770
|
125
|
520
|
370
|
390
|
720
|
350
|
410
|
250
|
445
|
705
|
25
|
4-φl8
|
|
65-25-30
|
1130
|
840
|
135
|
570
|
315
|
360
|
660
|
350
|
410
|
240
|
430
|
640
|
25
|
4-φl8
|
|
65-25-40
|
1130
|
840
|
135
|
570
|
315
|
360
|
660
|
350
|
410
|
240
|
430
|
640
|
25
|
4-φl8
|
|
65-40-25
|
1130
|
840
|
135
|
570
|
315
|
360
|
660
|
350
|
410
|
240
|
430
|
640
|
25
|
4-φl8
|
|
65-65-25
|
1190
|
840
|
135
|
570
|
380
|
390
|
720
|
350
|
410
|
255
|
465
|
705
|
25
|
4-φl8
|
|
80-40-16
|
1120
|
770
|
125
|
520
|
370
|
390
|
720
|
350
|
410
|
250
|
445
|
705
|
25
|
4-φl8
|
|
80-40-25
|
1190
|
840
|
135
|
570
|
380
|
390
|
720
|
350
|
410
|
255
|
465
|
705
|
25
|
4-φl8
|
|
80-25-40
|
1190
|
840
|
135
|
570
|
380
|
390
|
720
|
350
|
410
|
255
|
465
|
705
|
25
|
4-φl8
|
|
80-65-25
|
1190
|
840
|
135
|
570
|
380
|
390
|
720
|
350
|
410
|
255
|
465
|
705
|
25
|
4-φl8
|
|
80m80-35
|
1325
|
1050
|
170
|
705
|
350
|
390
|
720
|
450
|
500
|
270
|
465
|
725
|
25
|
4-φ23
|
|
80-40-50
|
1370
|
1050
|
170
|
705
|
350
|
390
|
720
|
450
|
500
|
270
|
465
|
725
|
25
|
4-φ23
|
|
80-50-60
|
1390
|
1050
|
170
|
705
|
350
|
390
|
720
|
450
|
500
|
270
|
465
|
725
|
25
|
4-φ23
|
|
100-80-20
|
1350
|
1010
|
170
|
630
|
450
|
430
|
825
|
430
|
480
|
300
|
580
|
820
|
28
|
4-φ18
|
|
100-100-15
|
1350
|
1010
|
170
|
630
|
450
|
430
|
825
|
430
|
480
|
300
|
580
|
820
|
28
|
4-φ18
|
|
100-100-20
|
1420
|
1035
|
200
|
630
|
450
|
430
|
825
|
450
|
500
|
300
|
580
|
820
|
25
|
4-φ23
|
|
100-100-30
|
1520
|
1050
|
170
|
705
|
450
|
430
|
825
|
450
|
500
|
300
|
580
|
820
|
25
|
4-φ23
|
|
100-80-45
|
1620
|
1180
|
210
|
785
|
450
|
430
|
825
|
500
|
550
|
325
|
600
|
840
|
28
|
4-φ23
|
|
100-80-60
|
1620
|
1180
|
210
|
785
|
450
|
430
|
825
|
500
|
550
|
325
|
600
|
840
|
28
|
4-φ23
|
|
100-80-80
|
1670
|
1250
|
210
|
785
|
450
|
430
|
825
|
500
|
550
|
325
|
600
|
840
|
28
|
4-φ23
|
|
125-120-20
|
1650
|
1260
|
255
|
750
|
610
|
560
|
990
|
450
|
500
|
325
|
625
|
910
|
30
|
4-φ23
|
|
150-180-14
|
1650
|
1260
|
255
|
750
|
610
|
560
|
990
|
450
|
500
|
325
|
625
|
910
|
30
|
4-φ23
|
|
150-180-20
|
1710
|
1260
|
255
|
750
|
610
|
560
|
990
|
450
|
500
|
325
|
625
|
910
|
30
|
4-φ23
|
|
150-180-30
|
1820
|
1350
|
275
|
800
|
630
|
560
|
990
|
520
|
565
|
350
|
650
|
930
|
30
|
4-φ23
|
|
150-180-38
|
1930
|
1450
|
300
|
850
|
655
|
560
|
990
|
580
|
660
|
350
|
650
|
930
|
30
|
4-φ23
|
|
200-280-14
|
1920
|
1440
|
300
|
840
|
800
|
720
|
1205
|
520
|
565
|
365
|
680
|
1030
|
30
|
4-φ23
|
|
200-280-20
|
2035
|
1440
|
300
|
840
|
800
|
720
|
1205
|
520
|
565
|
365
|
680
|
1030
|
30
|
4-φ23
|
|
200-300-25
|
2060
|
1440
|
300
|
840
|
800
|
720
|
1205
|
520
|
565
|
365
|
680
|
1030
|
30
|
4-φ23
|
|
200-280-28
|
2145
|
1540
|
300
|
940
|
800
|
720
|
1205
|
580
|
660
|
385
|
700
|
1050
|
30
|
4-φ23
|
|
250-420-20
|
2180
|
1600
|
300
|
1000
|
800
|
800
|
1330
|
610
|
680
|
430
|
800
|
1200
|
30
|
4-φ23
|
|
300-800-14
|
2580
|
1880
|
300
|
1280
|
800
|
1030
|
1500
|
610
|
680
|
530
|
900
|
1350
|
30
|
4-φ23
|
 |
|
型号
|
吸人口法兰尺寸
|
排出口法兰尺寸
|
|
DN1
|
D1
|
Dxx
|
d1
|
b1
|
f1
|
n1×d01
|
DN2
|
D2
|
D22
|
d2
|
b2
|
f2
|
n1×d02
|
|
25-8-15
|
25
|
100
|
75
|
60
|
14
|
2
|
4×φ14
|
25
|
100
|
75
|
60
|
14
|
2
|
4×φ14
|
|
32-5-20
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
32-10-20
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
32-9-30
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
40-10-20
|
40
|
130
|
100
|
80
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
40-20-15
|
40
|
130
|
100
|
80
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
40-15-30
|
40
|
130
|
100
|
80
|
14
|
2
|
4×φ14
|
32
|
120
|
90
|
70
|
14
|
2
|
4×φ14
|
|
50-10-20
|
50
|
140
|
110
|
90
|
14
|
2
|
4×φ14
|
40
|
130
|
100
|
80
|
14
|
2
|
4×φ14
|
|
50-20-12
|
50
|
140
|
110
|
90
|
14
|
2
|
4×φ14
|
40
|
130
|
100
|
80
|
14
|
2
|
4×φ14
|
|
50-15-30
|
50
|
140
|
110
|
90
|
14
|
2
|
4×φ14
|
40
|
130
|
1OO
|
80
|
14
|
2
|
4×φ14
|
|
50-20-35
|
50
|
140
|
110
|
90
|
14
|
2
|
4×φ14
|
40
|
130
|
100
|
80
|
14
|
2
|
4Xφ14
|
|
65-30-18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
65
|
160
|
130
|
11O
|
14
|
2
|
4×φ14
|
|
65-25-30
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
65-25-40
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
65-40-25
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
65-65-25
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
65
|
160
|
130
|
11O
|
14
|
2
|
4×φ14
|
|
80-40-16
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
80-40-25
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
11O
|
14
|
2
|
4×φ14
|
|
80-25-40
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
80-65--25
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
80-80-35
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
80-40-50
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
80-50-60
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
65
|
160
|
130
|
110
|
14
|
2
|
4×φ14
|
|
100-80-20
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-100-15
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-100-20
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-100-30
|
1OO
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-80-45
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-80-60
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
100-80-80
|
100
|
210
|
170
|
145
|
15
|
3
|
4×φ18
|
80
|
190
|
150
|
125
|
15
|
2
|
4×φ18
|
|
125-120-20
|
125
|
240
|
200。
|
175
|
20
|
3
|
8×φ18
|
125
|
240
|
200
|
175
|
20
|
3
|
8×φ18
|
|
150-180-14
|
150
|
t265
|
225
|
200
|
20
|
3
|
8×φ18
|
125
|
240
|
200
|
175
|
20
|
3
|
8×φ18
|
|
150-180-20
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
125
|
240
|
200
|
175
|
20
|
3
|
8×φ18
|
|
150-180-30
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
125
|
240
|
200
|
175
|
20
|
3
|
8×φ18
|
|
150-180-38
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
125
|
240
|
200
|
175
|
20
|
3
|
8×φ18
|
|
200-280-14
|
200
|
320
|
280
|
255
|
22
|
3
|
8×φ18
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
|
200-280-20
|
200
|
320
|
280
|
255
|
22
|
3
|
8×φ18
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
|
200-300-25
|
200
|
320
|
280
|
255
|
22
|
3
|
8×φ18
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
|
200-280-28
|
200
|
320
|
280
|
255
|
22
|
3
|
8×φ18
|
150
|
265
|
225
|
200
|
20
|
3
|
8×φ18
|
|
250-420-20
|
250
|
375
|
335
|
310
|
24
|
3
|
12×φ18
|
200
|
320
|
280
|
255
|
22
|
3
|
8×φ18
|
|
300-800-14
|
300
|
375
|
395
|
362
|
24
|
4
|
12×φ18
|
250
|
375
|
335
|
310
|
24
|
3
|
12×φ18
|
|
