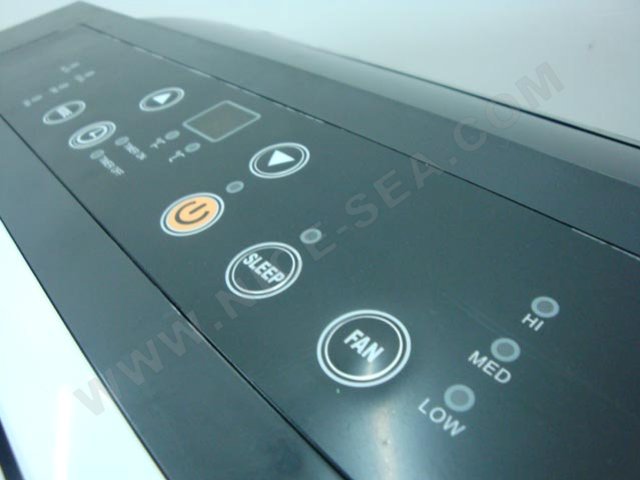

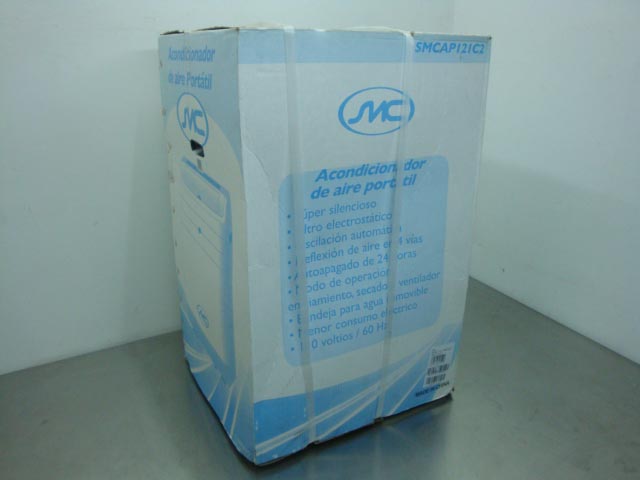

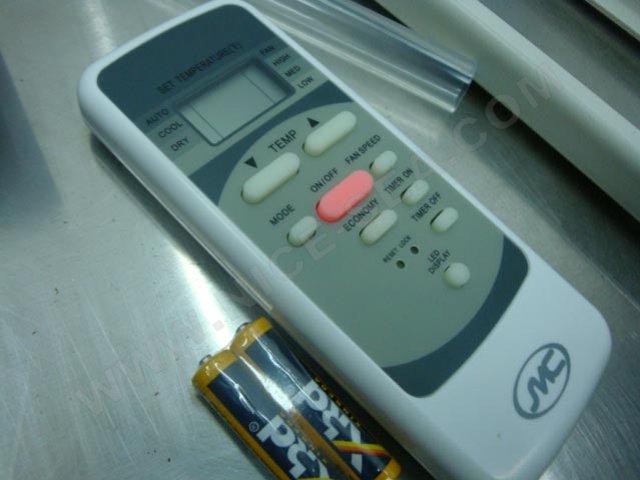

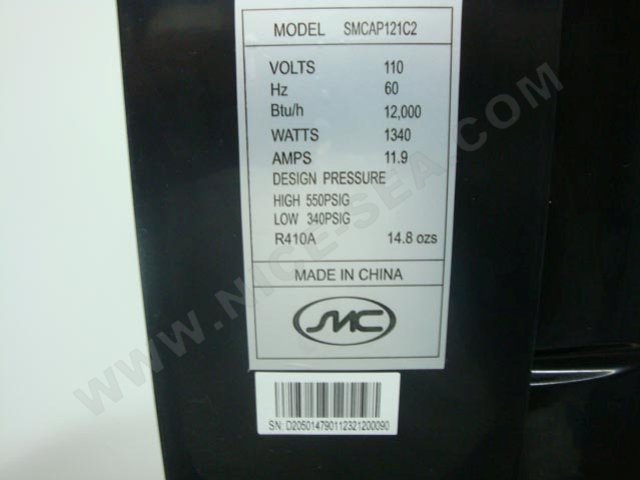

o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0o0 Brand MC[麦可/德国] Model: SMCAP121C2 Code 220025401760 Power supply Ph-V-Hz 1Ph,115V~,60Hz Cooling Capacity Btu/h 12000 Input W 1340 Current A 11.9 EER W/W 2.62 Heating Capacity Btu/h N/A Input W N/A Rated current A N/A COP W/W N/A Moisture Removal L/h 1.2 Rated input consumption W 1700 Rated current A 17 Starting current A ---- Plug type AWG14x3/LCDI Control type Remote control Compressor Model EA103M1C-1DZDU1 Type ROTARY Brand GMCC Capacity Btu/h 10099 Input W 1015 Rated current(RLA) A 9.25 Locked rotor Amp(LRA) A ---- Thermal protector B440-135-141E Thermal protector position EXTERNAL Capacitor uF 55 Refrigerant oil ml ESTER OIL VG74/350 Refrigerant type R410A/420g Design pressure MPa 4.2/1.5 Indoor fan motor Model YDK23-4AS Brand Welling Input W 52/48/42 Capacitor uF 6 Speed(hi/mi/lo) r/min 1330/1210/1040 Evaporator a.Number of rows 2 b.Tube pitch(a)x row pitch(b) mm 21x13.37 c.Fin spacing mm 1.2 d.Fin type (code) Hydrophilic aluminium e.Tube outside dia.and type mm Ф7, innergroove tube f.Coil length x height x width mm 340x294x26.74 g.Number of circuits 1 Indoor air flow (Hi/Mi/Lo) m3/h 572/512/435 Indoor noise level (Hi/Mi/Lo) dB(A) 54/51/48 Condenser a.Number of rows 2+1 b.Tube pitch(a)x row pitch(b) mm 19.5x11.6 c.Fin spacing mm 1.2 d.Fin type (code) Unhydrophilic aluminium e.Tube outside dia.and type mm φ5, innergroove tube f.Coil length x height x width mm 273x331.5x11.6+273x370.5x23.2 g.Number of circuits 2 Outdoor fan motor Model YDK66-4A Brand Welling Input W 121/59 Capacitor uF 8 Speed(hi/mi/lo) r/min 1110/700 Outdoor noise level (Hi/Mi/Lo) dB(A) dB(A) 59/56 Dimension (W*D*H) mm 490x395x812 Packing (W*D*H) mm 555x500x860 Net/Gross weight Kg 29/32.5 Operation temp (room temp.) ℃ 17-35/---- Application area Sq. Feet 450-550 |
