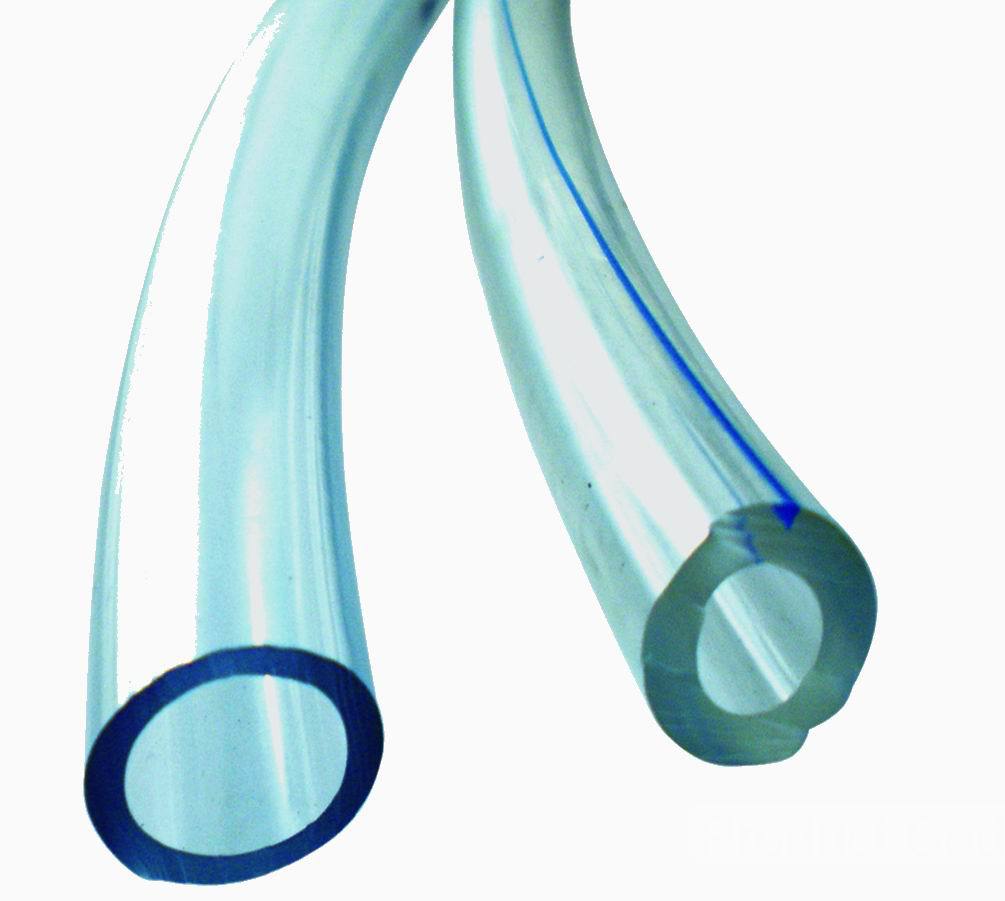

PVC 流体管 Product code: FRD-009
PVC TUBE
结 构：PVC管体。
应 用：水，空气，油及其他无腐蚀性液体。
工作温度：-5℃～60℃
Structure: PVC hose body.
Applications: Water, air, oil and other liquids without strong corrosivity.
Working Temperature: -5℃～60℃
| PVC流体管标准规格表 | |||||||
| SPECIFICATIONS OF PVC TUBE | |||||||
| 型号 | 英制尺寸 | 公制尺寸 Metric Measurement | 工作压力 W.P. | 爆破压力 B.P. | 重量 Weight | ||
| 内径 I.D. | 外径 O.D. | 长度Length | |||||
| Item No. | Inch | mm | mm | m/roll | Bar | Bar | Kg/roll |
| LT-2×0.5 | 1/12" | 2 | 3 | 500 | 1.5 | 5 | 3.25 |
| LT-3×0.5 | 1/8" | 3 | 4 | 500 | 1.5 | 5 | 4.3 |
| LT-4×1 | 5/32" | 4 | 6 | 500 | 1.5 | 5 | 11 |
| LT-5×1 | 3/16" | 5 | 7 | 200 | 1.5 | 5 | 5.5 |
| LT-6×1 | 1/4" | 6 | 8 | 100 | 1.5 | 5 | 3 |
| LT-8×1 | 5/16" | 8 | 10 | 100 | 1.5 | 4 | 4 |
| LT-10×1 | 3/8" | 10 | 12 | 100 | 1.5 | 4 | 5 |
| LT-12×1.5 | 1/2" | 12 | 15 | 50 | 1 | 4 | 4.5 |
| LT-15×1.5 | 5/8" | 15 | 18 | 50 | 1 | 3 | 5.5 |
| LT-19×1.5 | 3/4" | 19 | 22 | 50 | 1 | 3 | 7 |
| LT-25×2.5 | 1" | 25 | 30 | 50 | 1 | 3 | 15 |
| LT-32×3 | 1-1/4" | 32 | 38 | 50 | 1 | 3 | 23 |
| LT-38×3 | 1-1/2" | 38 | 44 | 50 | 1 | 3 | 27 |
| LT-50×4 | 2" | 50 | 58 | 40 | 1 | 2.5 | 38 |
