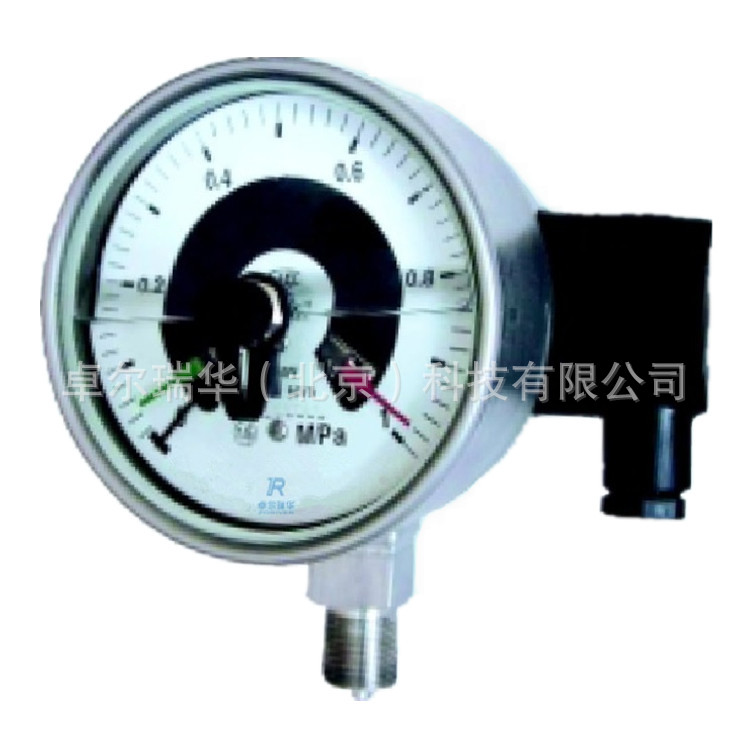

不锈钢充油耐震电接点压力表YXH/YXHN
YXH（坚固型）不锈钢电接点压力表YXH/YXHN
(Solid model) Stainless steel electric contact pressure gauge
YXHN（坚固型）不锈钢充油耐震接点压力表
(Solid model) Stainless steel vibration-proof electric contact pressure
gauge (oil filling)

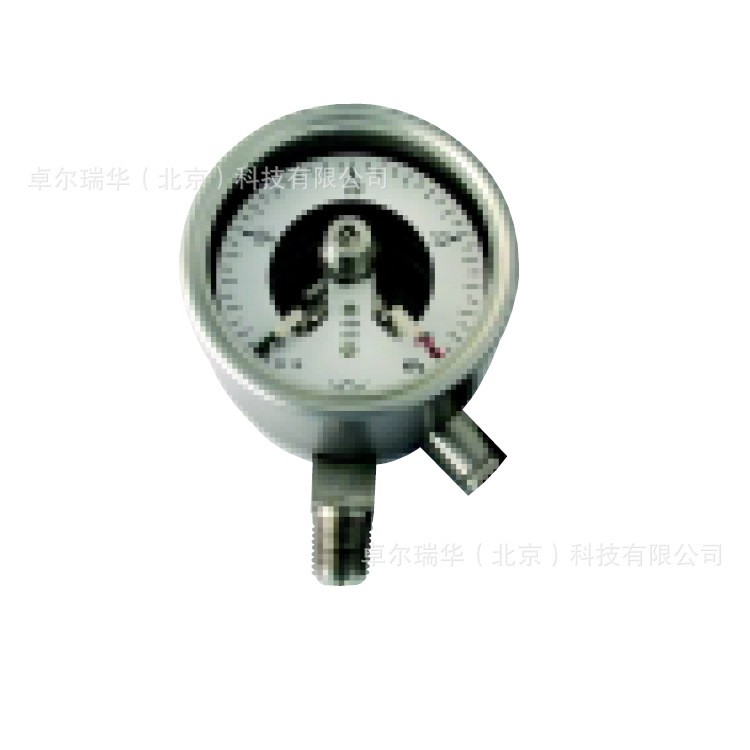

防腐型 Corrosion-proof YXH-100 (YXC-100H)
防腐耐震型 Corrosion-proof & vibration-proof YXHN-100 (YXCN-100H)
应用Application
主要测压元件及仪表外壳均采用不锈钢材料设计，适于测量腐蚀性较强的气体及液体的压力。
The materials of element for measuring pressure and case are both stainless steel, Suitable for measuring the strong corrosion gaseous and liquid medium pressure.
通过对表体内充油，利用液体阻尼确保无振动显示，适用于测量介质强烈脉动及环境震动较大的场所。
Both gauges are filled with oil for vibrtion-proof indication,suitable for the adverse service conditions wher sharp pulsation and vibration exist.
仪表安装类型 不锈钢防腐电接点压力表可选型号 不锈钢充油耐震电接点压力表可选型号选型号
Mounting Stainless steel corrossion-proot Stainless steel vibration-proof with oil filling
Electric contact pressure gauge Electric contact pressure gauge

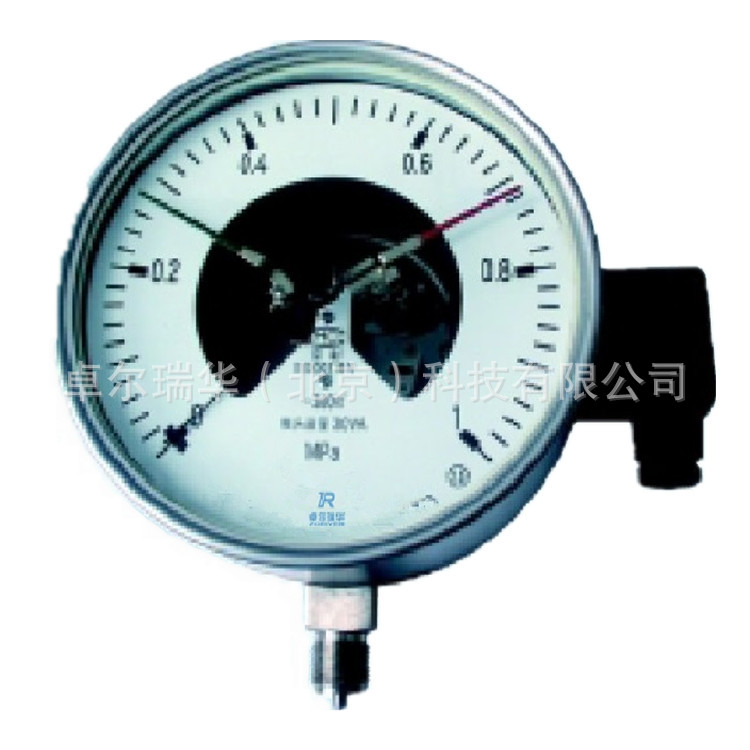

径向直接安装 Bottom mounting direct
Φ 63mm 外径diameter YXH-63. AO（YXC-63H）
Φ 100mm 外径diameter YXH-100. AO（YXC-100H） YXHN-100. AO（YXCN-100H）
Φ 150mm 外径diameter YXH-150. AO（YXC-150H） YXHN-150. AO（YXCN-150H）
Φ 160mm 外径diameter YXH-160. AO（YXC-160H） YXHN-160. AO（YXCN-160H）

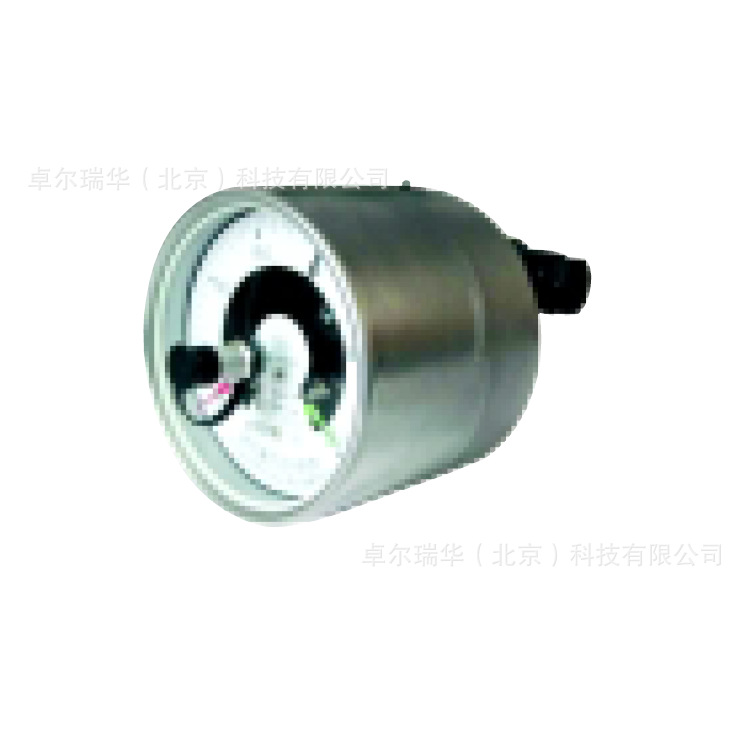

轴向直接安装 Back mounting direct
Φ 100mm 外径diameter YXH-100. BO（YXC-100HZ） YXHN-100. BO（YXCN-100HZ）
Φ 150mm 外径diameter YXH-150. BO（YXC-150HZ） YXHN-150. BO（YXCN-150HZ）

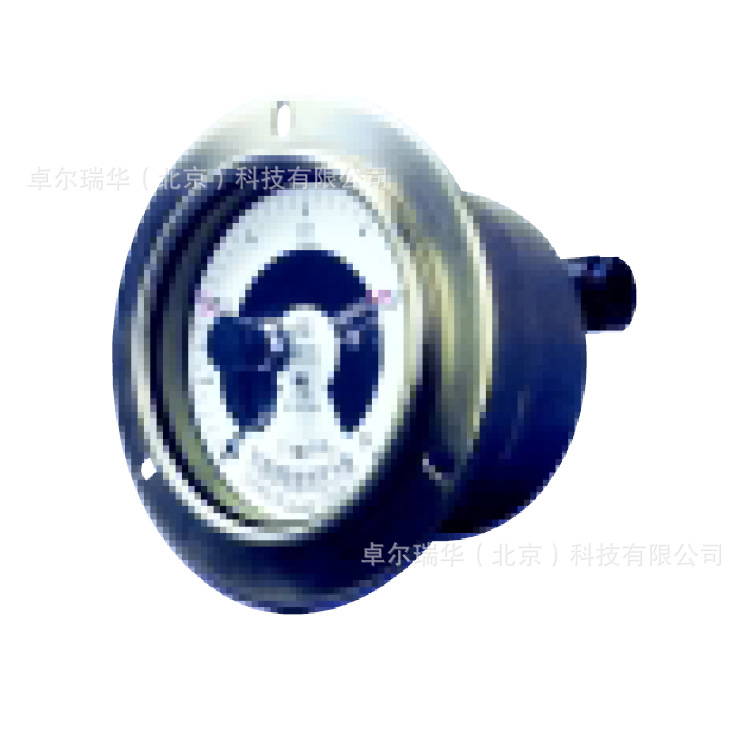

轴向嵌装 Back embedded mounting
Φ 100mm 外径diameter YXH-100. BT（YXC-100HZT） YXHN-100. BT（YXCN-100HZT）
Φ 150mm 外径diameter YXH-150. BT（YXC-150HZT） YXHN-150. BT（YXCN-150HZT）

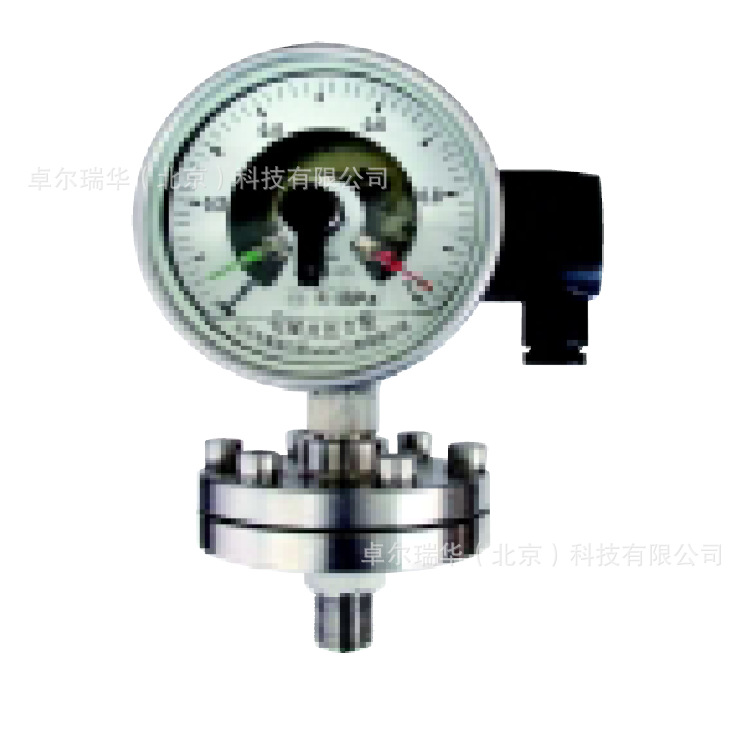

与隔离体的配接Fitting Diaphragm Seal
以上各类型的仪表均可与本公司生产的使用不同材料膜片的隔离体配接，组成隔膜式电接点压力表，适用于测量多种腐蚀性较强及粘度大易结晶介质的压力。
Composing with our diaphragm seals in different materials,the above pressure gauges can also made into the electric contact diaphragm pressure gauges that are applied in measuring viscous,strongly corrosive medium as well as the orystallographic medium.

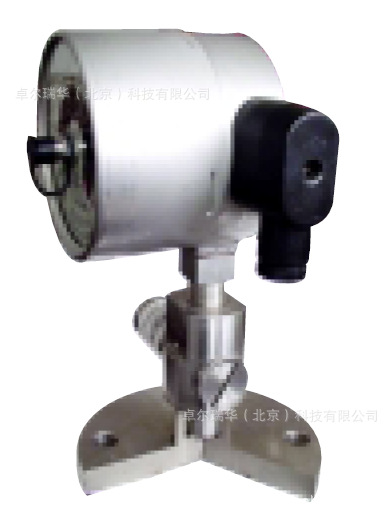

法兰隔膜体连接flange diaphragm seals.
主要技术参数 Specifications
测量范围Ranges:
最小 Minimum: 0～0.1Mpa 最大 Maximum: 0-100Mpa
负压最小 Minimum negative pressure: -0.1Mpa
负压最大 Maximum negative pressure: -0.1～2.4Mpa
指示精度Accuracy Class(Indication):
Φ 100mm ≤ 0.1mp △ 2.51A 精度
Φ 63mm/2.5%; Φ 100/150/160mm,1.5% (1.0% 可选)
设定精度Accuracy Class(Setting): 4%
接点数量Quantity of Contacts:
1 个或2 个， (Φ100mm3个或4 个接点可选)
1 or 2, (Φ 100mm, 3 or 4 contacts available)
接点材质≥ 110V 银镍合金，≤ 36V 黄金
最高工作电压 Maximum Working Voltag:AC380V 或(or) DC220V
最大电流Maximum Current: 1A
触头功率 温度影响Contact Power Temperature Effects
30VA 使用温度偏离 20 ± 5℃时，其设定点误差变化不大于0.6%/10℃
When temperature deviates from 20 ± 5℃, the error of set point is not more than 0.6%/10℃
防护等级Protection Class:标准不充油型IP 54；充油型IP65
仪表璃玻璃 Window 普通玻璃、安全玻璃 Common glass or Safety glass
连接尺寸Connection Size:M20 × 1.5 或约定的特殊要求 Customized connection
耐震型充液 Filling for vibration-proof style:专用充填液 Special liquid filled

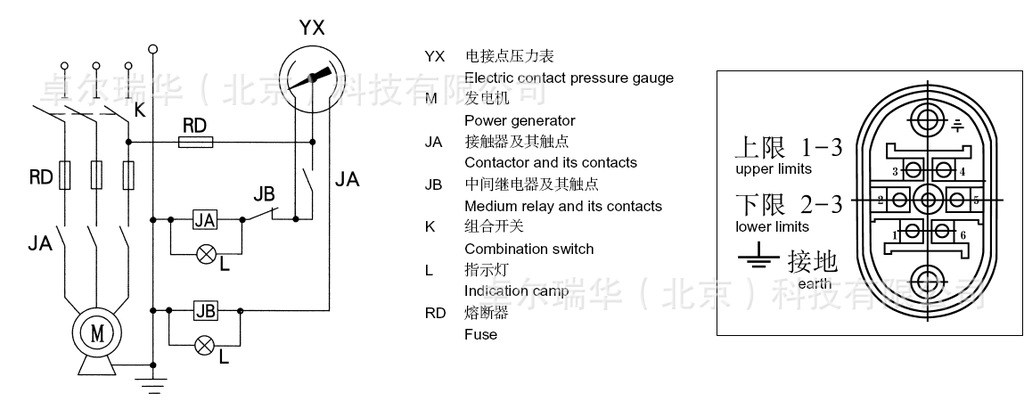

接线图 Wiring Scheme

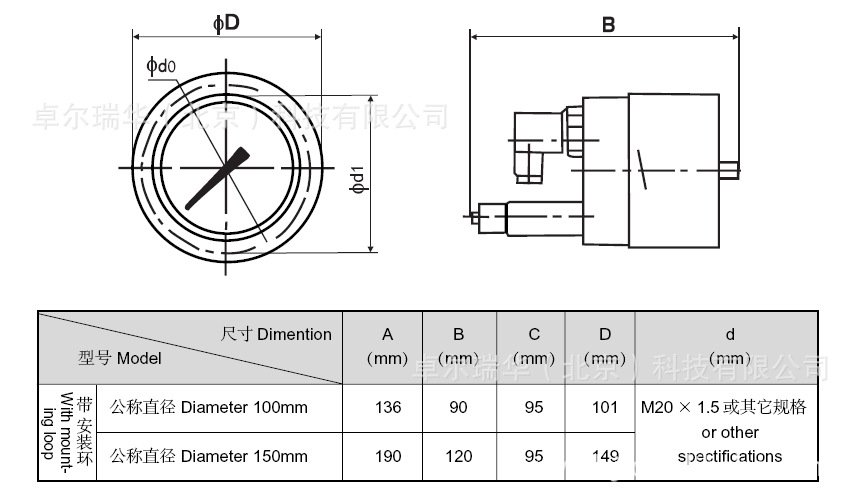

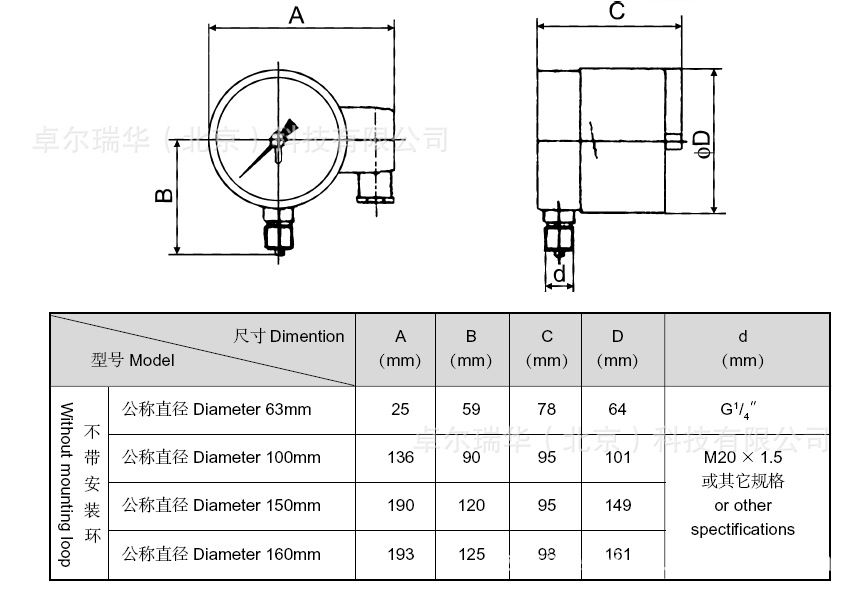

仪表外型尺寸 DIMENTIONS
