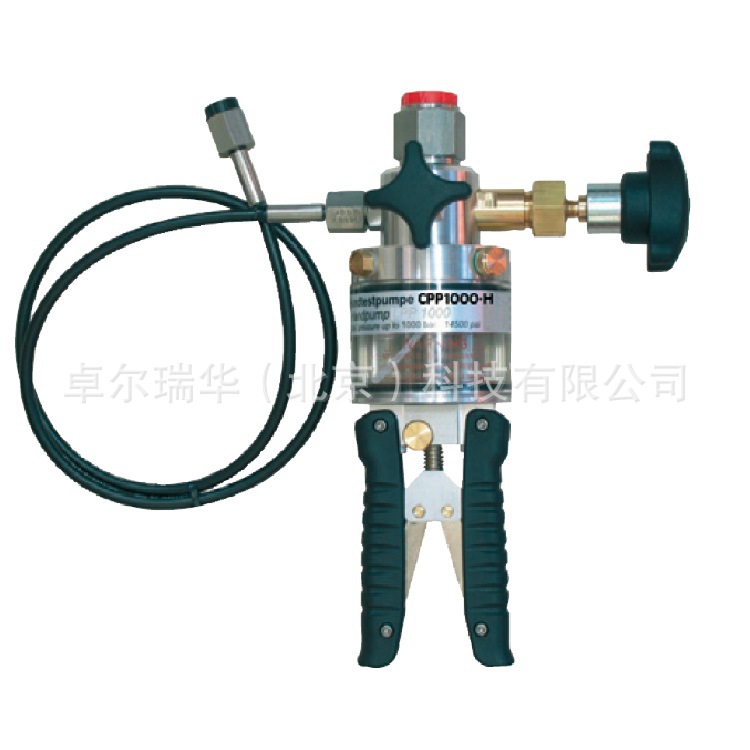

Hydraulic hand test pump
Models CPP700-H and CPP1000-H
Applications
■ Simple test pressure generation on-site, in the laboratory or in the workshop
■ For the testing, adjustment and calibration of all types of pressure measuring instruments
■ Hydraulic pressure generation up to 700 bar or 1,000 bar
Special features
■ Ergonomic handling
■ Precise setting through the fine-adjustment valve
■ Compact dimensions
■ Low weight
Description
Application areas
Test pumps serve as pressure generators for the testing, adjustment and calibration of mechanical and electronic pressure measuring instruments through comparative measurements. These pressure tests can be carried out statically in the laboratory or workshop, or on-site at the measuring point. The model CPP700-H and CPP1000-H hand test pumps have been developed specifically for on-site pressure
generation.
Easy operation
If one connects the test item and a sufficiently-accurate reference pressure measuring instruments to the test pump, on actuating the pump, the same pressure will act on both measuring instruments. By comparison of the two measured values at any given pressure value, a check of the accuracy and/or adjustment of the pressure measuring instrument under test can be carried out.
Easy handling
The CPP700-H and CPP1000-H hand test pumps, despite their very compact dimensions, enable simple and accurate pressure generation of up to a max. of 700 bar or 1,000 bar (respectively), with an integrated switching from system pressure to high-pressure generation.
For the precise setting for accurate comparative testing, the pump features a fine-adjustment valve.
As a pressure-transmission medium, either hydraulic oil or clean water, free of calcium-carbonate should be used.
The reference instrument is screwed directly to the top of the pump, and the test item is connected using a connecting hose with a G ¼ female thread, included in delivery. The CPP700-H is supplied, as standard, with a Minimess® 1620, test item connecting system.
1) Test item connection hose CPP700-H: Minimess® System with a G ¼ female pressure gauge connector CPP1000-H: G ¼ female
2) Pressure relief valve
3) Threaded sealing plug for fluid reservoir
4) Fine-adjustment valve (volume adjustment)
5) Reference instrument connection G ½ female, freerunning
6) Fluid reservoir
7) Toggle control, system and high-pressure generation
8) Pump handles
9) Blind plug, do not open!
